Abutment pile-cap footing · ACI 318-25

A worked example — an abutment pile-cap footing

An abutment footing carries an eccentric bridge-seat wall down to its piles, under both vertical load and horizontal earth pressure. The offset, two-way load path makes it a D-region — designed with a strut-and-tie model in AStrutTie.

Based on the AStrutTie 2020 Technical Book, Example 3.1 (abutment on pile foundation), run under ACI 318-25.

Given

f_ck = 24 MPa (concrete)
f_y = 400 MPa (steel)
φ = 0.75 (strength-reduction factor)
Footing dimensions, pile layout & wall loads (vertical + horizontal) — entered in the template (see the drawing below)

①

The problem

An abutment footing carries an eccentric wall down to a pile group, under vertical load and horizontal earth pressure. Its geometry, pile layout and wall loads define the design — typed straight onto the drawing.

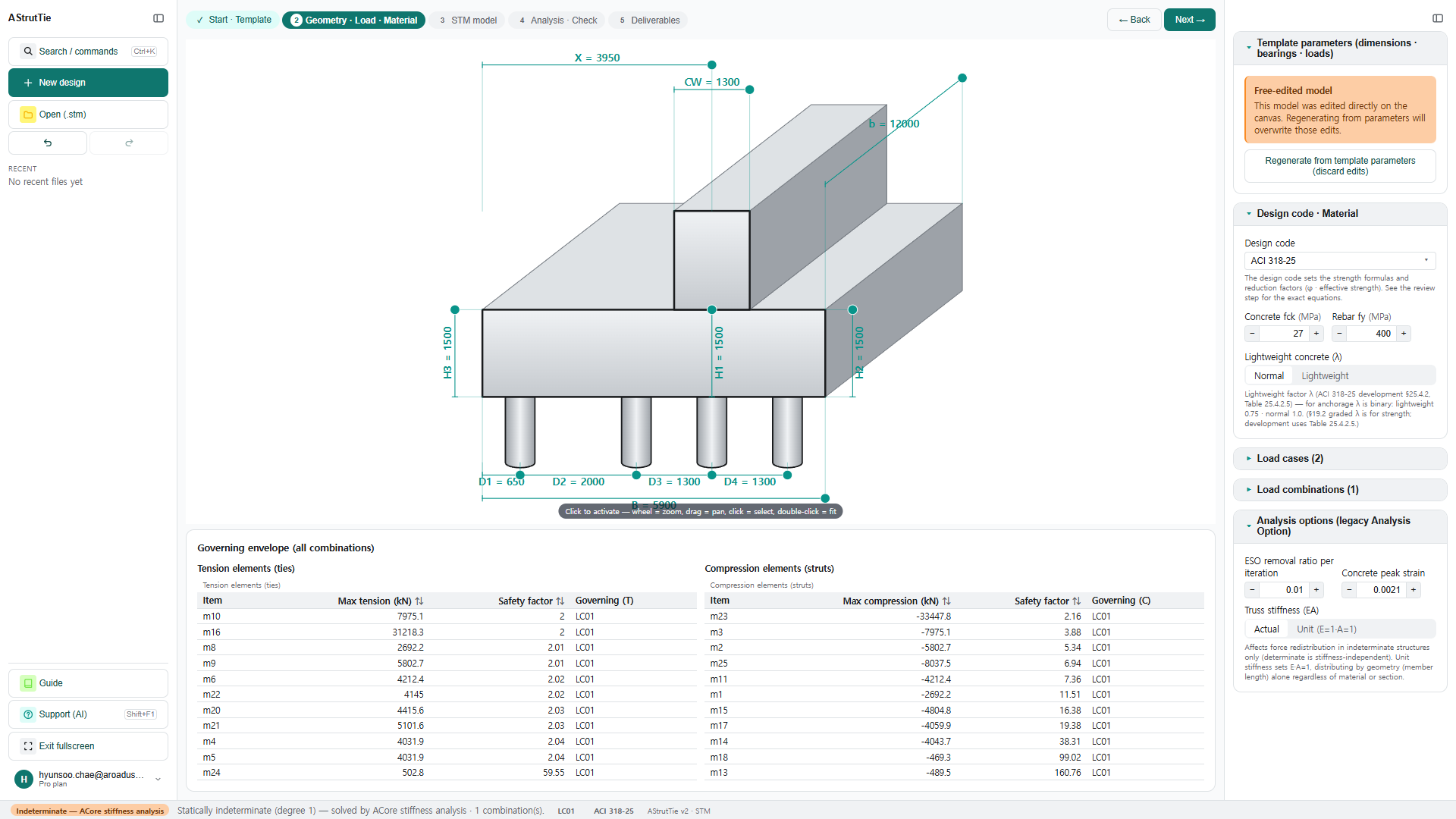

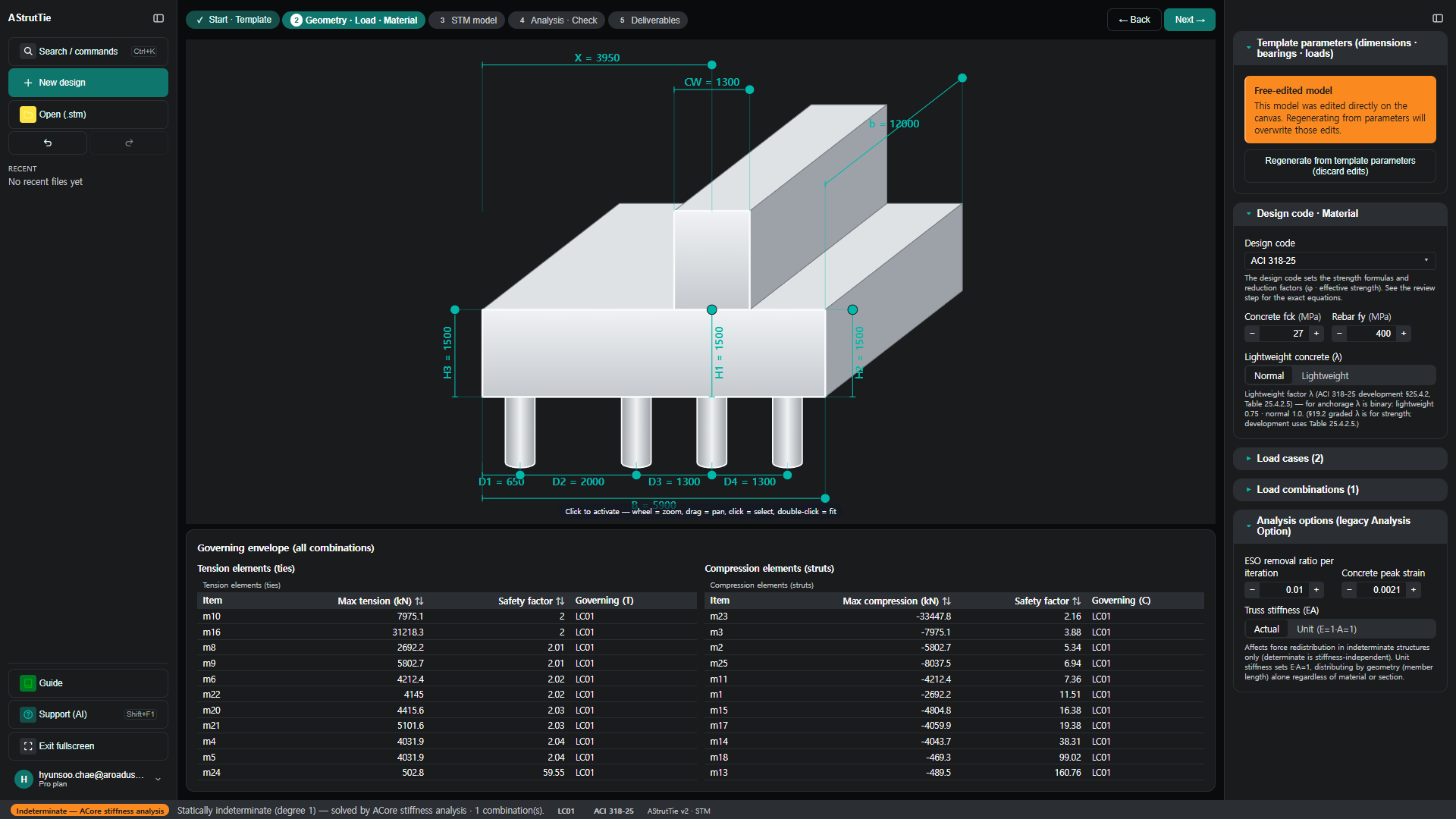

Abutment pile-cap footing geometry and dimensions — External geometry, piles and wall loads of the abutment footing.

②

Build the model — template → strut-and-tie

The pier-footing template builds a strut-and-tie model for the abutment: struts carry the eccentric wall load down to the piles, ties resist the spread and the horizontal thrust, and nodal zones are typed CCC / CCT / CTT.

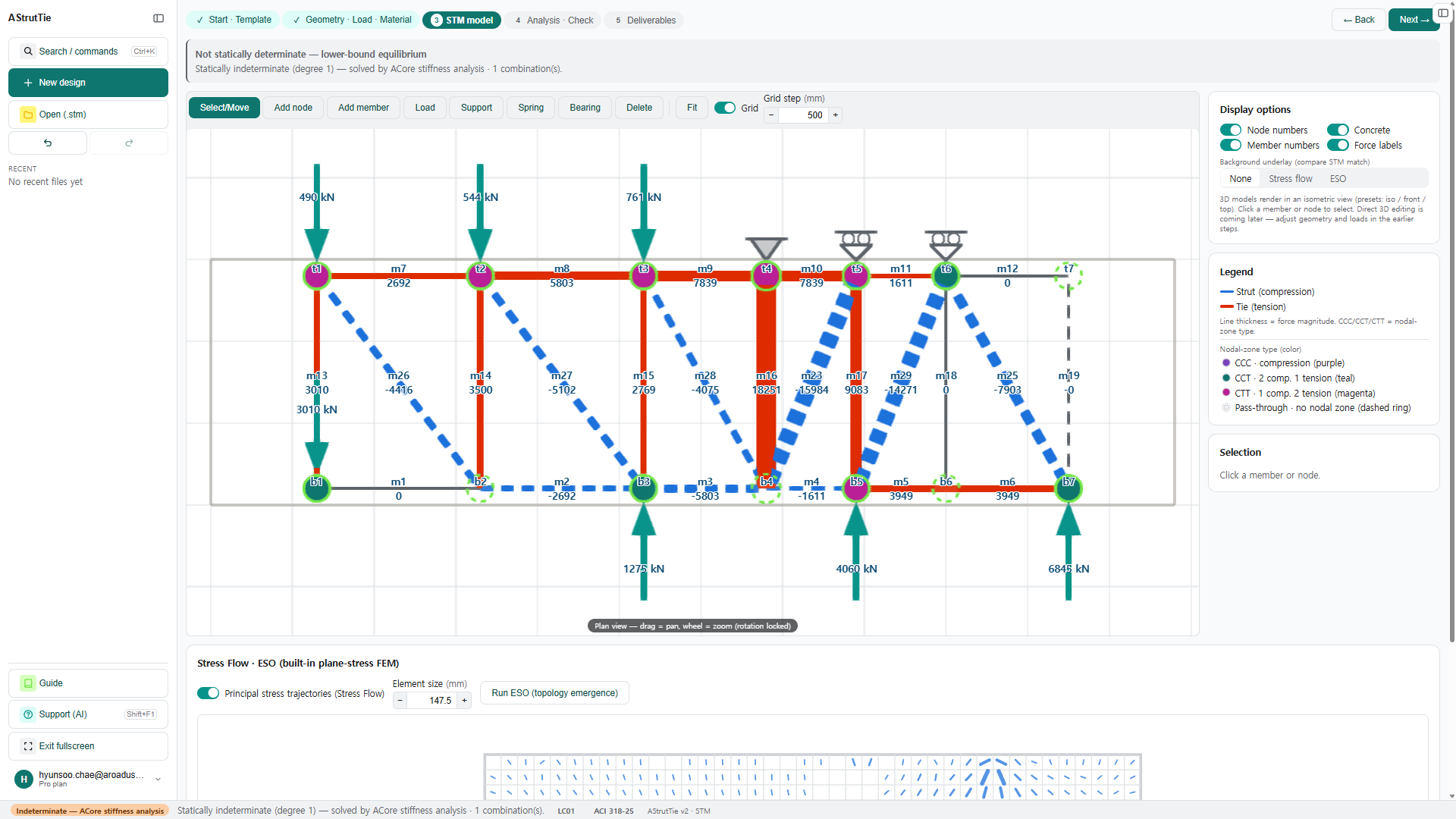

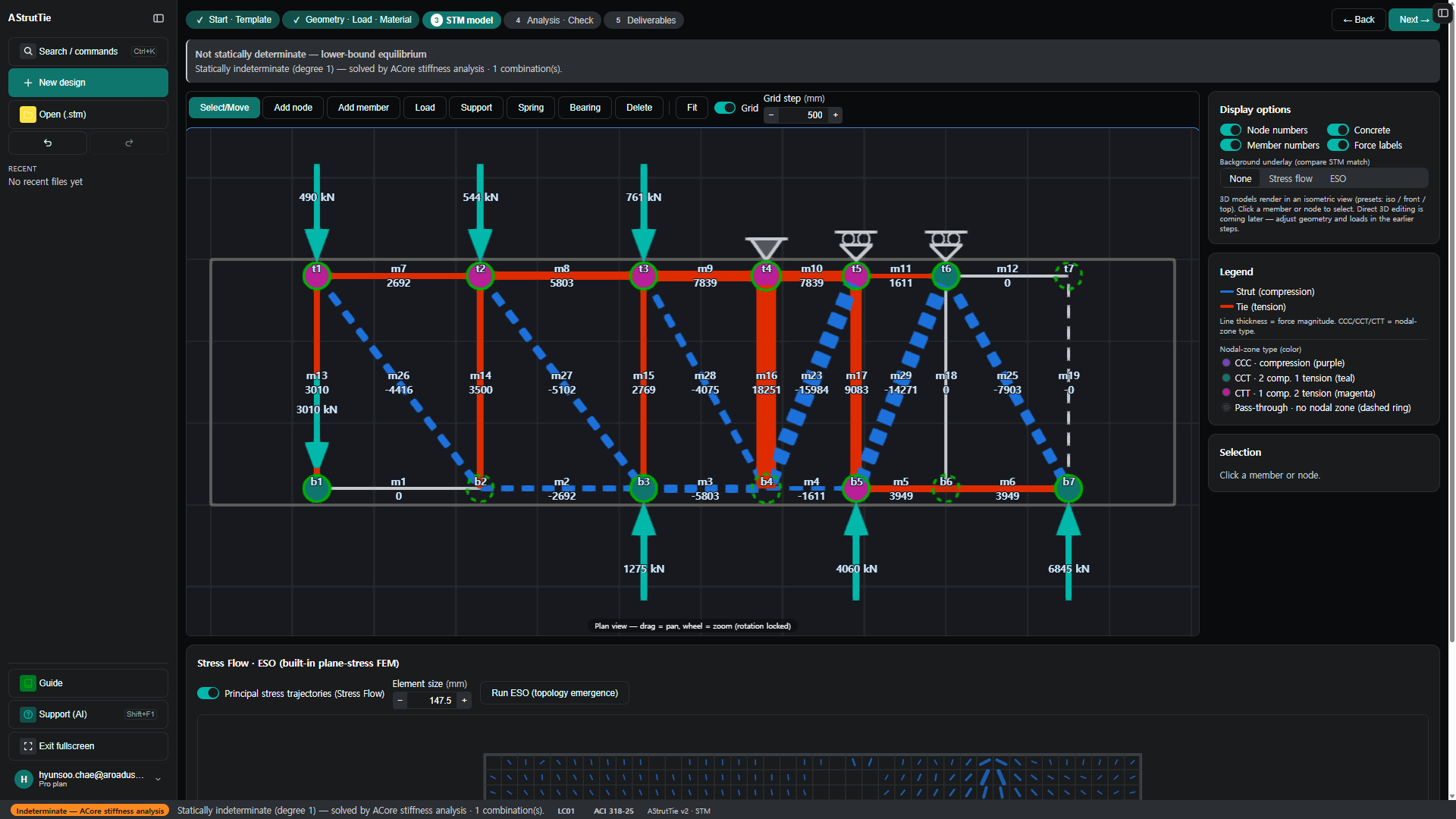

Strut-and-tie model of the abutment footing — The strut-and-tie model on the AStrutTie canvas.

③

Analyze & check — every member, every combination

AStrutTie resolves the member forces and checks every member against the code — ties, struts, nodal zones and anchorage — in one pass.

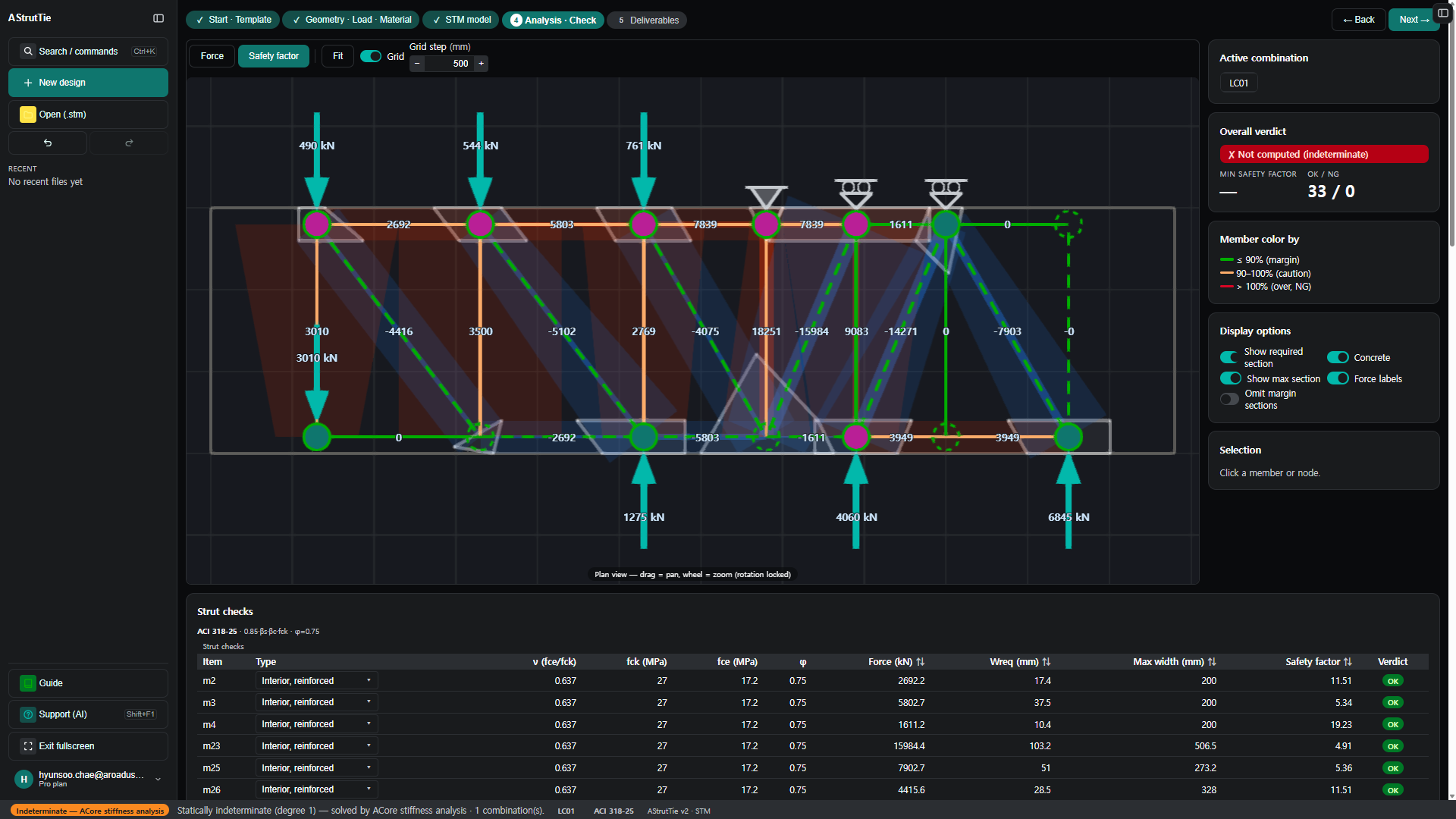

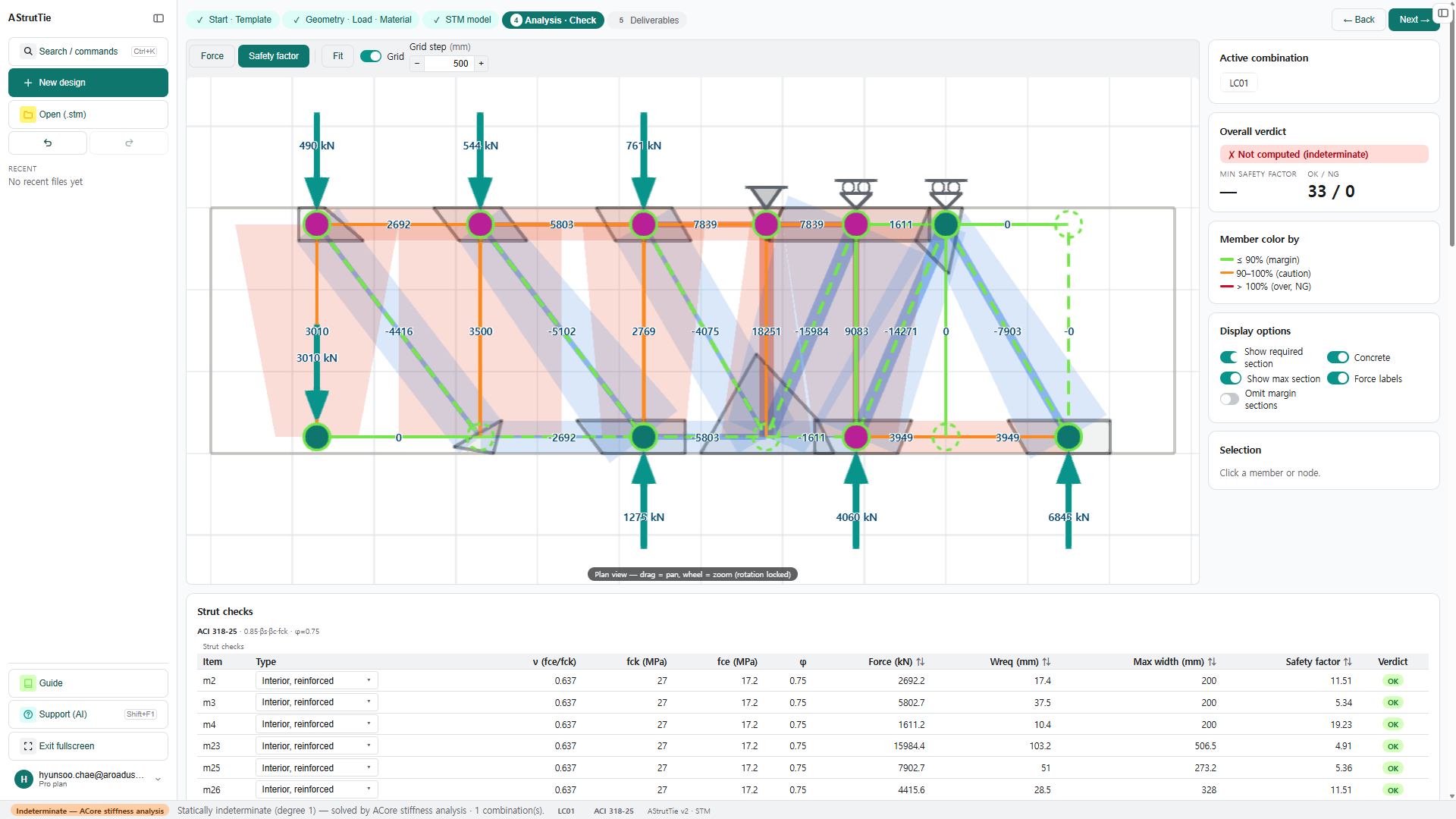

Abutment footing analysis results — Analysis · Check — member forces and per-member verdicts.

④

Tie check — required reinforcement

ACI 318-25

Required steel A_s,req is compared with the provided bars (size × count). φ = 0.75, f_y = 400 MPa.

As,req = Fu / (φ · fy)

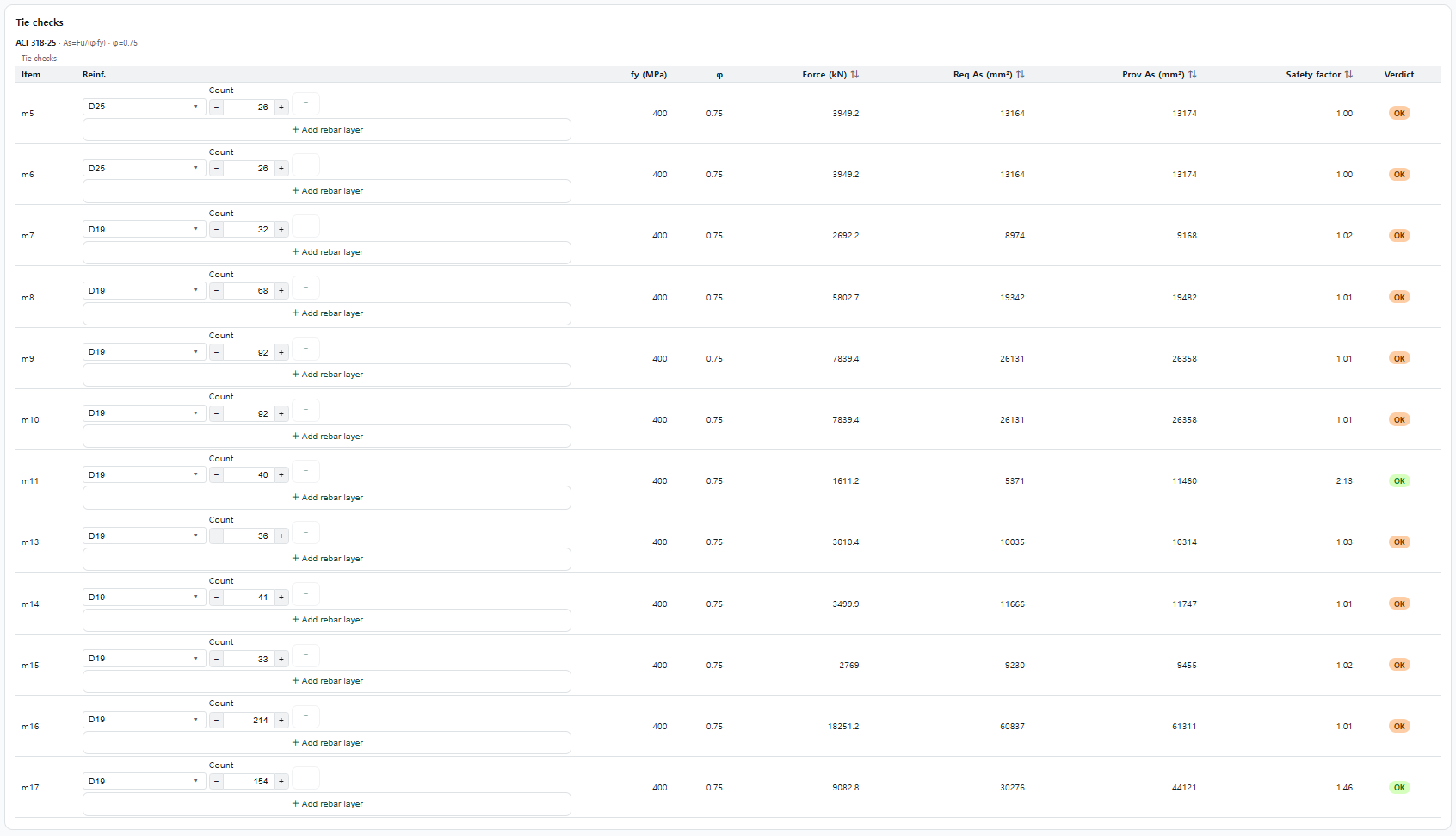

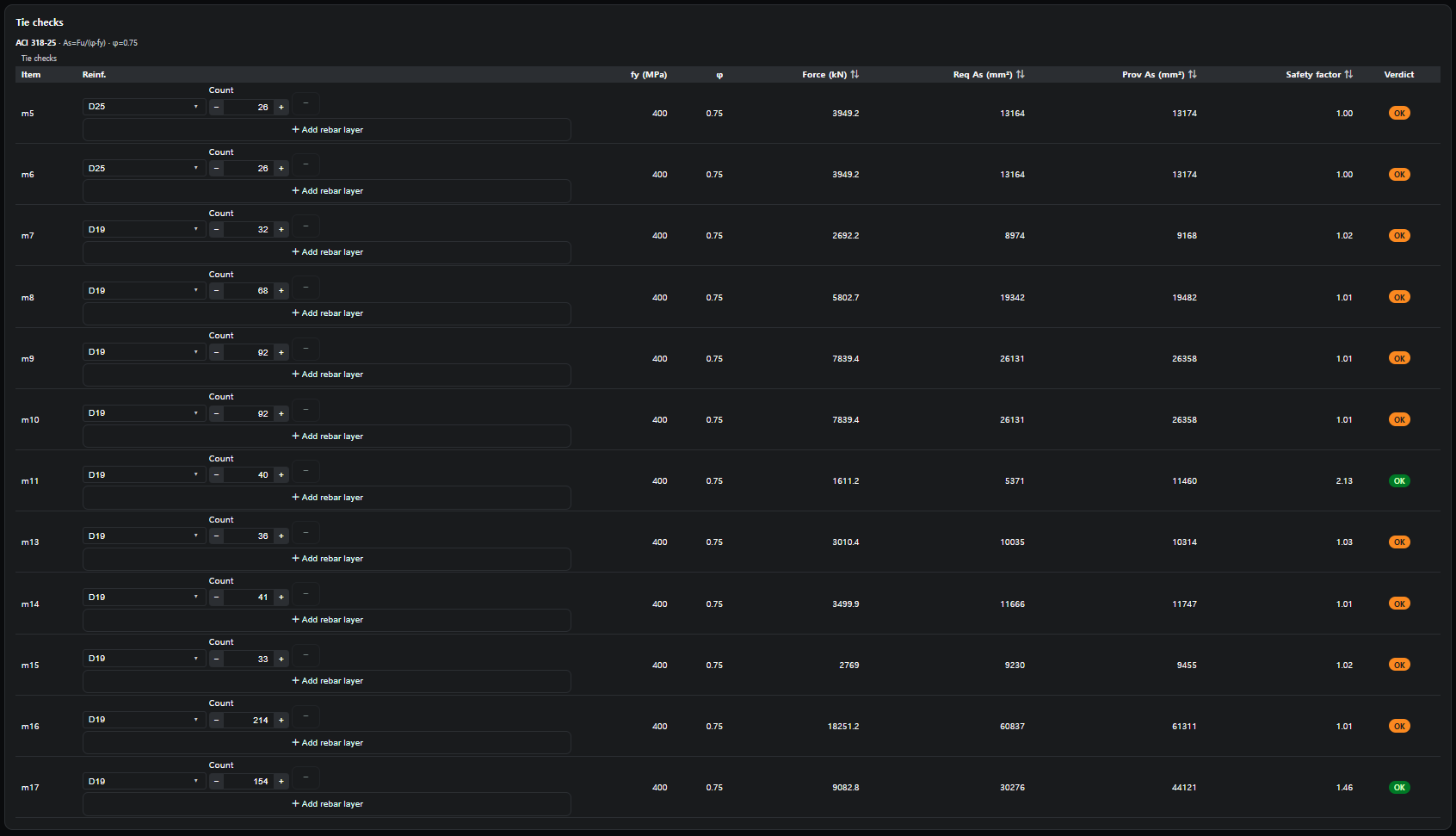

Required reinforcement table for the abutment footing ties — Tie checks — required vs provided A_s per member.

⑤

Strut check — effective strength & width

ACI 318-25

Effective strength depends on strut type — Boundary (f_ce = 0.85 f_ck = 20.4 MPa) or Interior, reinforced (0.637 f_ck = 15.3 MPa). The required width must fit the available width.

fce = 0.85 · βs · βc · fck
wreq = Fu / (φ · fce · b) ≤ wprov

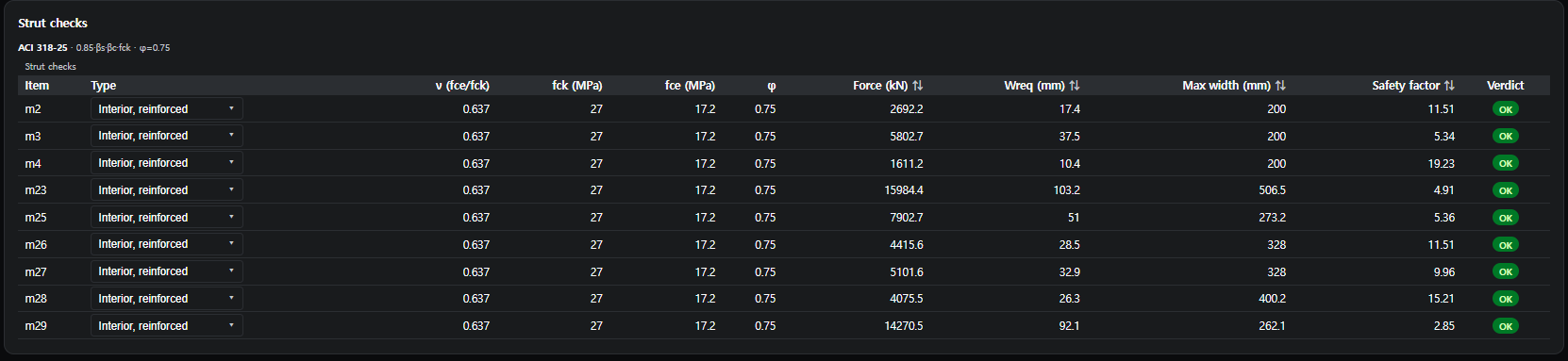

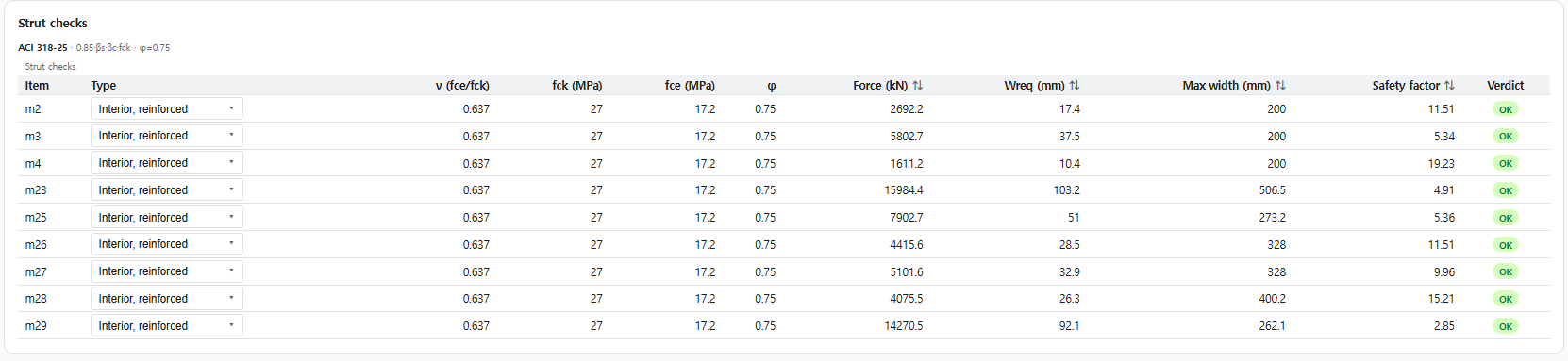

Strut strength verification of the abutment footing — Strut checks — f_ce, required width and safety factor per member.

⑥

Nodal-zone check — by node type

ACI 318-25

fce = 0.85 · βn · βc · fck
wreq = Fu / (φ · fce · b) ≤ wprov

Node	β_n	f_ce (MPa)
CCC	1.0	20.4
CCT	0.8	16.3
CTT	0.6	12.2

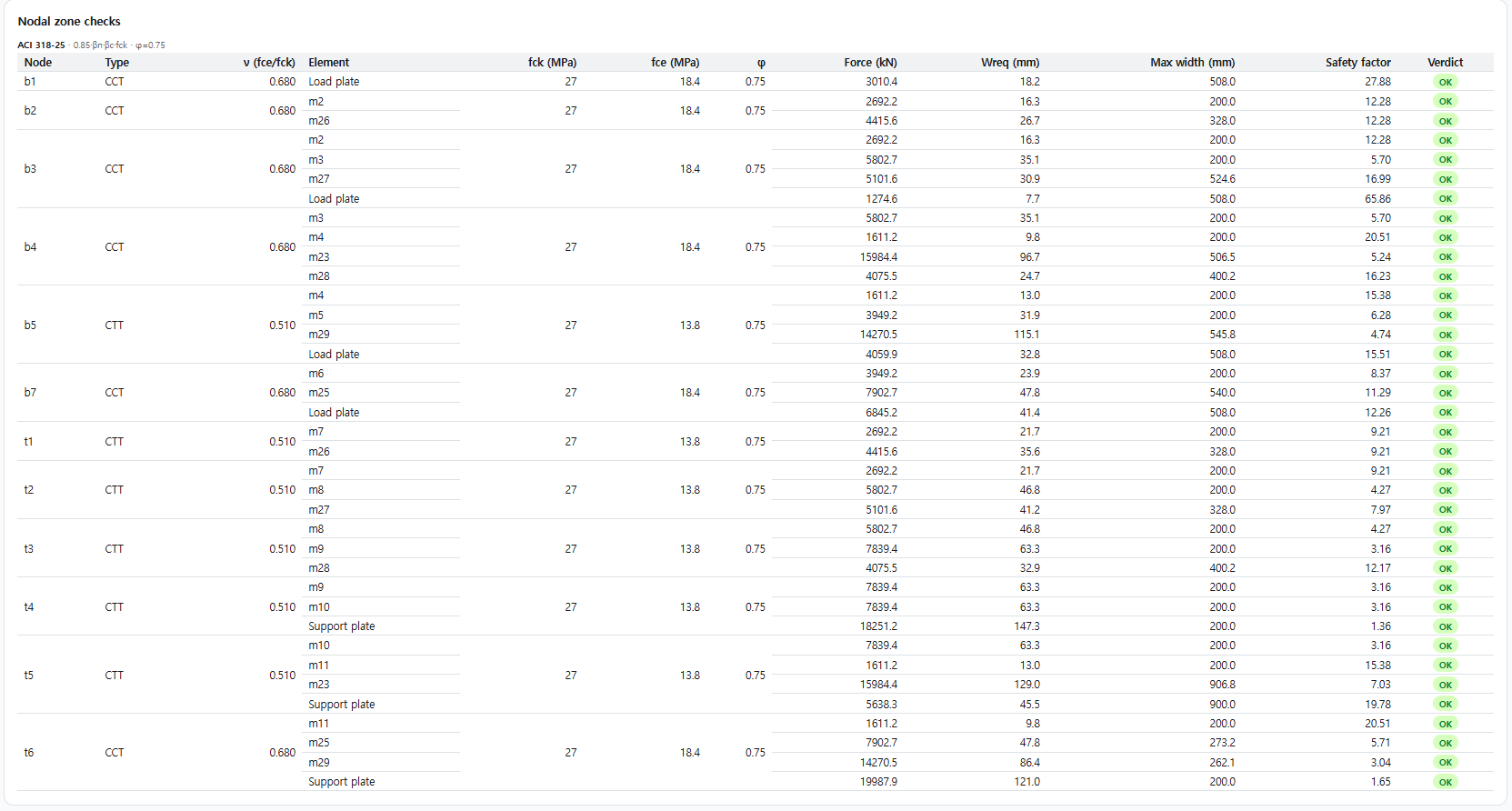

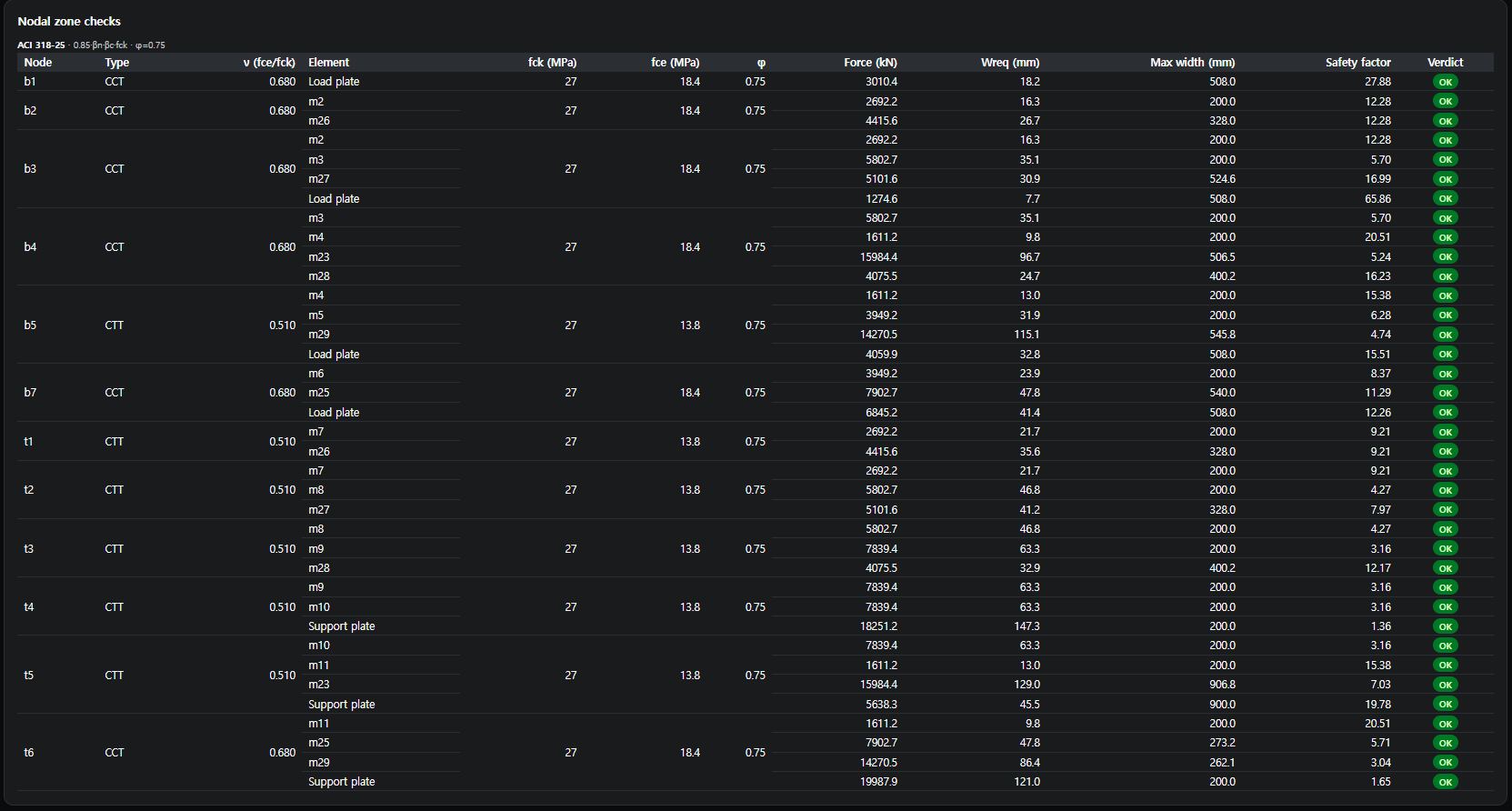

Nodal-zone strength verification of the abutment footing — Nodal-zone checks — each face against its node type.

⑦

Anchorage check — development at the node

ACI 318-25 §23.8.2 · §25.4

The tie must be anchored at the pile nodes: the available anchorage ℓanc (§23.8.2, extended nodal zone) must reach the required development length ℓd (§25.4). Available = straight length along the tie plus a code hook-tail credit where a hook fits.

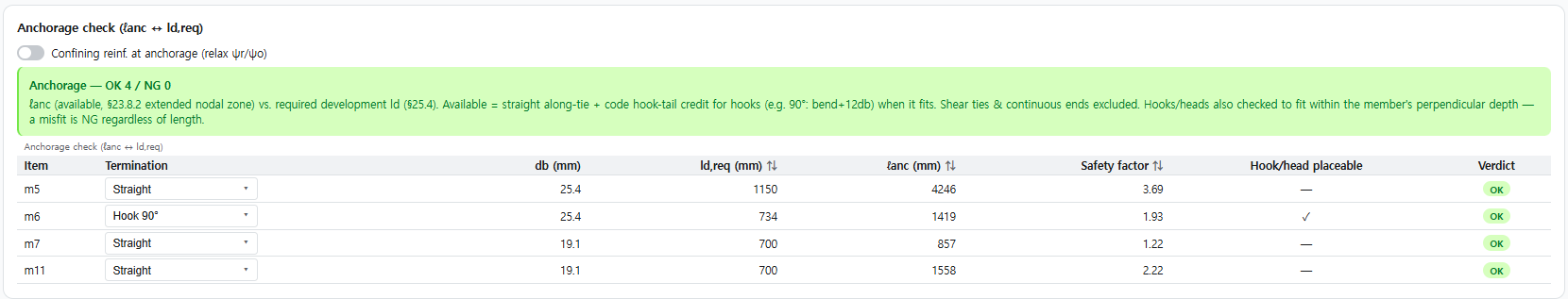

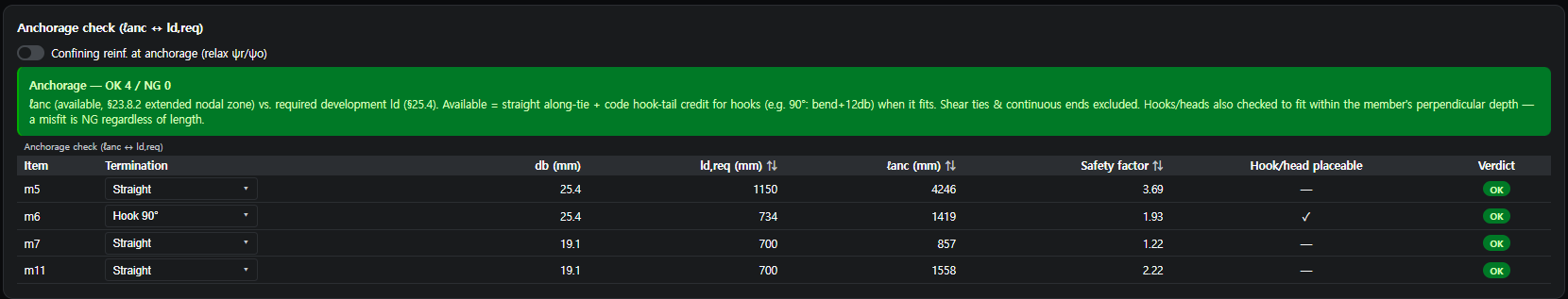

Tie anchorage verification of the abutment footing — Anchorage check — available ℓanc vs required development ℓd.

These are the same checks AStrutTie runs — the eccentric abutment load path, vertical and horizontal, verified member by member. How we verify →
